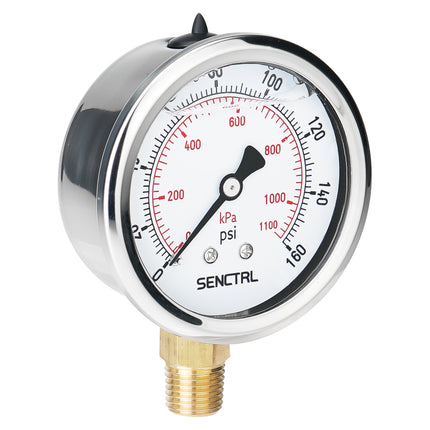

0-160 Psi Glycerine Filled Pressure Gauge, 1/4" NPT, 2.5" Dial, Lead Free

Share

0-160 Psi Glycerine Filled Pressure Gauge, 1/4" NPT, 2.5" Dial, Lead Free

Share

Product form

The SENCTRL stainless steel case pressure gauge offers exceptional quality, durability, and performance. Lead free brass and stainless steel wetted... Read more

SKU: Y.6VGL04.0/160#

Out of stock

$25.00$13.99

Free Shipping Within The Lower 48 US States

No hassle returns, 30 days return

Shipped today? Order within: Nov 27, 2024 17:00:00 -0800

Description

The SENCTRL stainless steel case pressure gauge offers exceptional quality, durability, and performance. Lead free brass and stainless steel wetted parts are suitable for measuring potable drinking water pressure test. The inside of the gauge is filled with glycerine which allows to use it under severe conditions accompanied by vibrations and pulsations. An ideal choice for satisfying most applications and installation requirements.

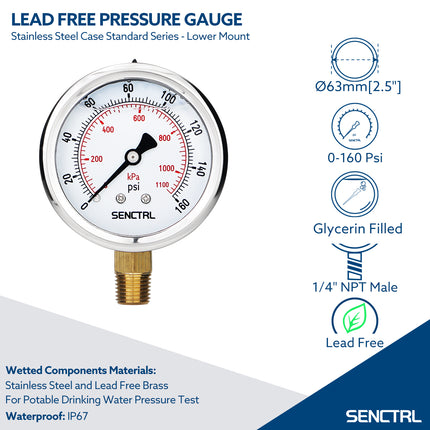

Specifications

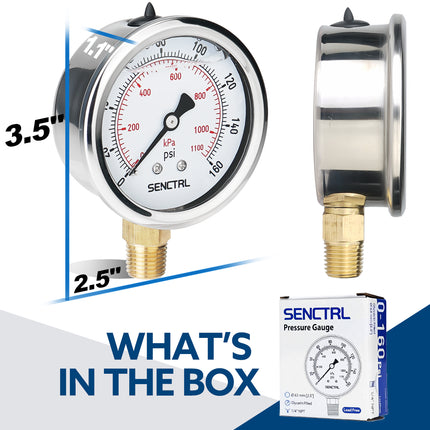

Dial Size: 2.5" (63 mm)
Mount Location: Lower Mount
Connection Size: 1/4" NPT
Liquid filling: Glycerin
Accuracy: +/-3-2-3%
Wetted Parts: Lead Free

Pros and cons

Robust design
Vibration & Shock-resistant
IP67 grade waterproof

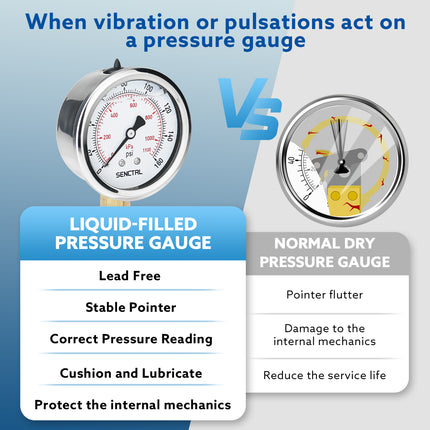

WHY CHOOSE A LIQUID-FILLED PRESSURE GAUGE ?

For certain applications pressure gauges with case fillings are recommended.
The following effects are prevented by the case filling.

Pointer flutter

Damages to the mechanics

Fogging of the window

More Specifications

Performance
Measuring principle: Bourdon tube
Indication accuracy: 2.5%
Scale Range: 0-160 Psi
Liquid filling: Glycerin
Ingress protection: IP67
+Pressure limitation:
-Steady: 3/4 x full scale value
-Fluctuating: 2/3 x full scale value
-Short time: Full scale value
Physical
Dial Size: 2.5" (63 mm)
Case Materials: stainless steel 304L
Bourdon tube Materials: Stainless steel 304L
Process connection Materials: Copper alloy (Lead Free)
Liquid filling: Glycerin
Process Connection Size: 1/4" NPT Male
Dial: Aluminium, white
Pointer: Aluminium, black
Window: Polycarbonate, crystal-clear
Environmental
Permissible Medium temperature: 140 ℉/60 ℃ maximum
Permissible Ambient Temperature: -4 to 140 ℉/-20 to 60 ℃

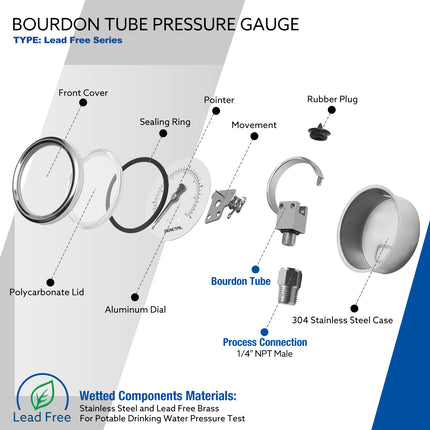

WETTED COMPONENTS

Bourdon Tube: Stainless steel 304L

Process Connection: Brass

Joints: Welded

Applications

+ For gaseous and liquid media that are not highly viscous or crystallising and will not attack copper alloy parts
- Pressure washers and sprayers
- Paint spray equipment
- Compressors
- Irrigation equipment
- Hydraulic systems
- Hydraulic hand tools

Datasheets & Instruction Manuals

Download Datasheets—Y.6VGL04.0/160#
