Description

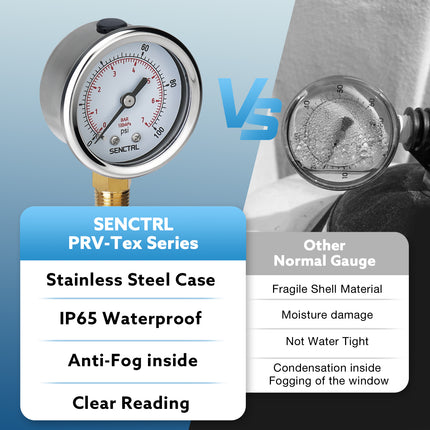

The SENCTRL PRV-Tex series pressure gauges adopt the PRV-Tex Vent design, make these models an ideal solution for many pressure measurement installations. Enable pressure compensation and waterproof at the same time. Prevent fogging of window inside or moisture damage from the infiltrating water such as being installed in environments exposure to moisture or rain.

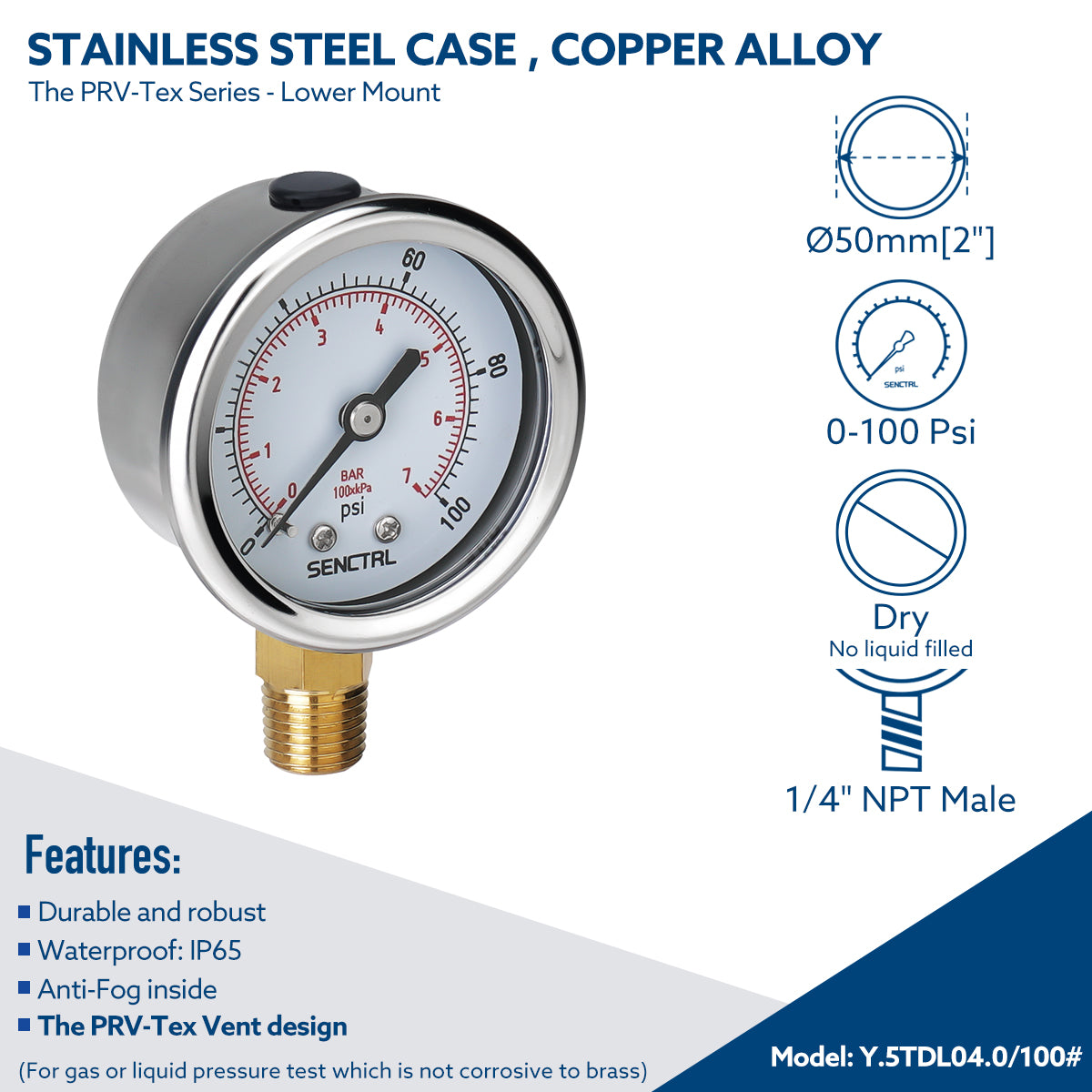

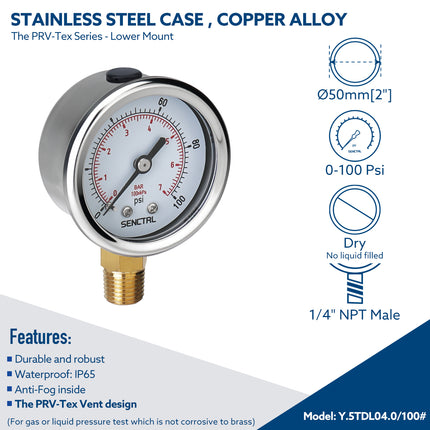

Specifications

Dial Size: 2" (50 mm)
Mount Location: Lower Mount
Connection Size: 1/4" NPT
Series: PRV-Tex
Dry: No liquid filled

Pros and cons

Robust design
Anti-Fog inside
IP67 grade waterproof

More Specifications

Performance
Measuring principle: Bourdon tube
Indication accuracy: 2.5%
Scale Range: 0-100 Psi
Dry: No liquid filled
Ingress protection: IP67
Waterproof: Anti-Fog inside
Pressure limitation:
- Steady: 3/4 x full scale value
- Fluctuating: 2/3 x full scale value
- Short time: Full scale value

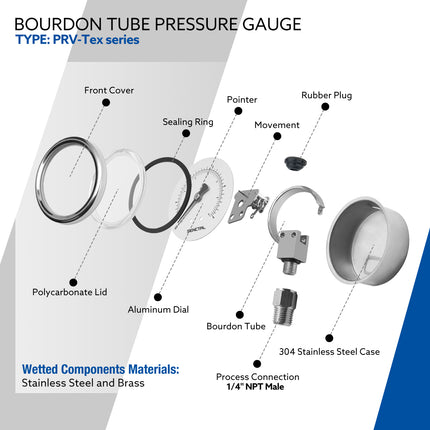

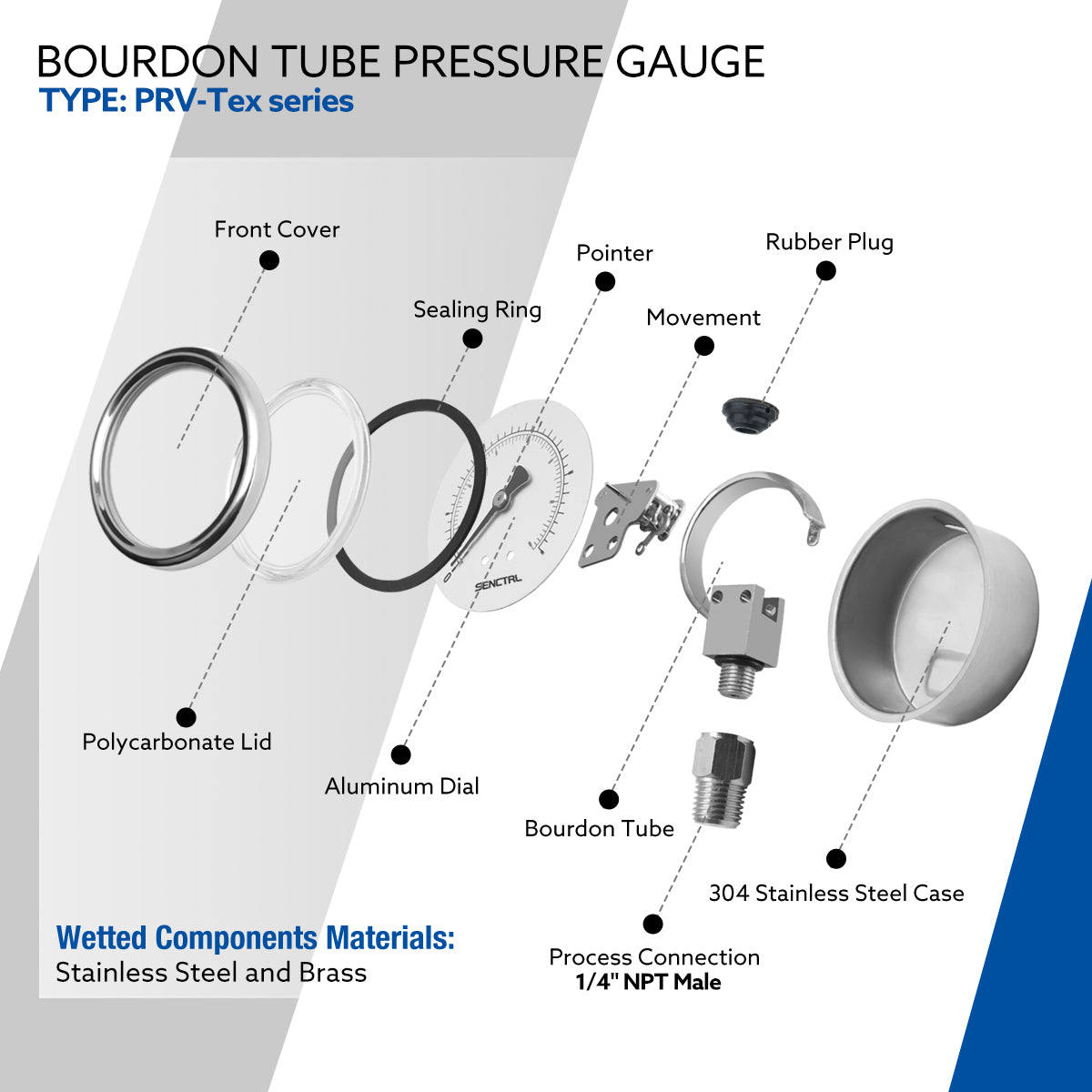

Physical

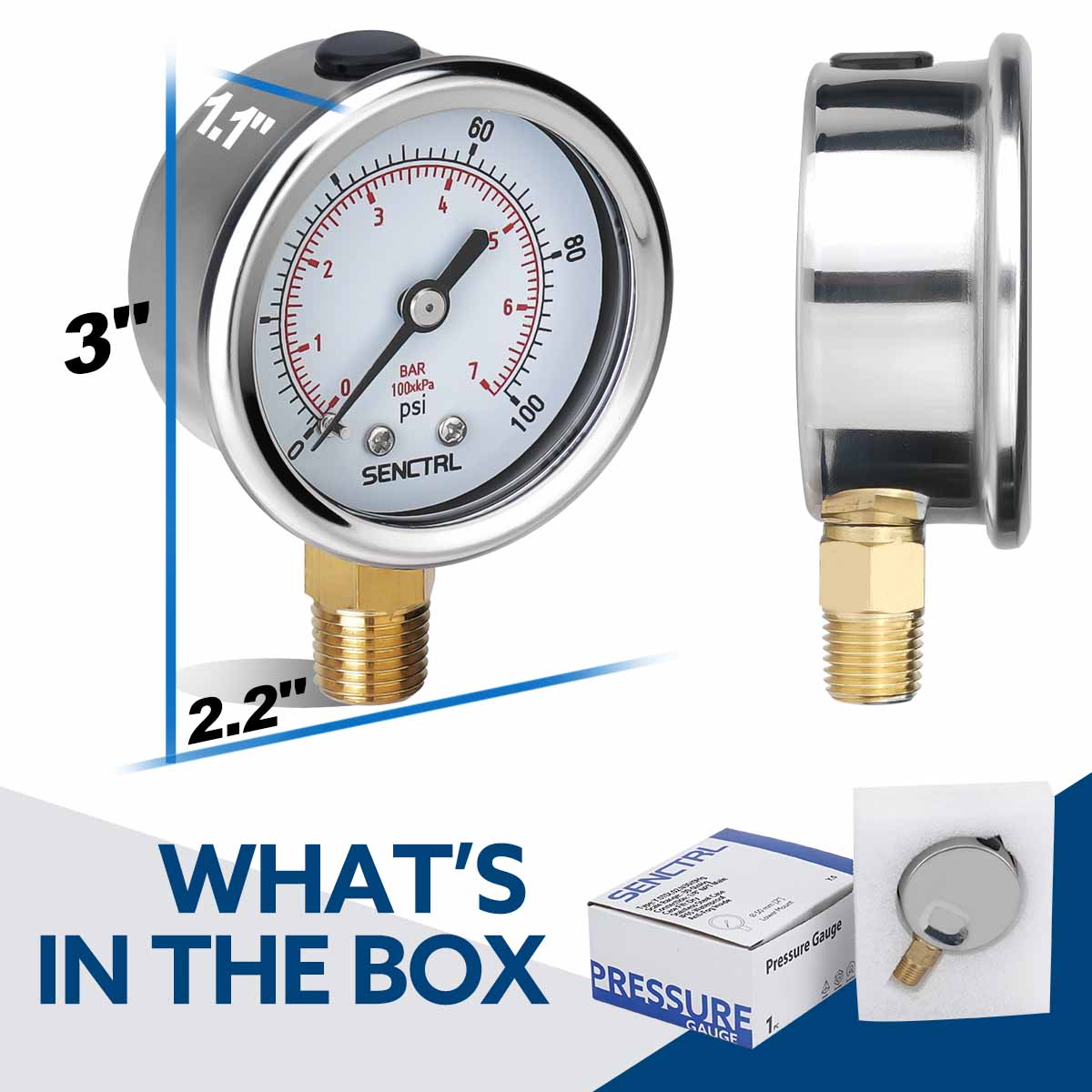

Dial Size: 2" (50 mm)
Case Materials: stainless steel 304L
Bourdon tube Materials: Stainless steel 304L
Process connection Materials: Copper alloy
Dry: No liquid filled
Process Connection Size: 1/4" NPT Male
Process Connection Location: Lower Mount
Dial: Aluminium, white
Pointer: Aluminium, black
Window: Polycarbonate, crystal-clear
Environmental
Permissible Medium temperature: 140 ℉/60 ℃ maximum
Permissible Ambient Temperature: -40 to 140 ℉/-40 to 60 ℃

WETTED COMPONENTS

Bourdon Tube: Stainless steel 304L

Process Connection: Brass

Applications

+ For gaseous and liquid media that are not highly viscous or crystallising and will not attack copper alloy parts
- Pumps and compressors
- Filter regulators
- Fluid power equipments
- Pool and spa filters
- Hydraulics and pneumatics
- OEM equipment
- Beverage dispensing equipment, coffee espresso
- Industrial machinery
- Outdoor use

Datasheets & Instruction Manuals

Download Datasheets—Y.5TDL04.0/100#
