0-60 Psi Glycerine Filled Pressure Gauge, 1/4" NPT, 2.5" Dial

Share

0-60 Psi Glycerine Filled Pressure Gauge, 1/4" NPT, 2.5" Dial

Share

Product form

SENCTRL stainless steel 2.5 inch liquid filled pressure gauges provide great corrosion resistance. This model features a 1/4" NPT stainless... Read more

SKU: Y.6TGL04.0/60#

Out of stock

$25.00$13.99

Free Shipping Within The Lower 48 US States

No hassle returns, 30 days return

Shipped today? Order within: Sep 19, 2024 17:00:00 -0700

Description

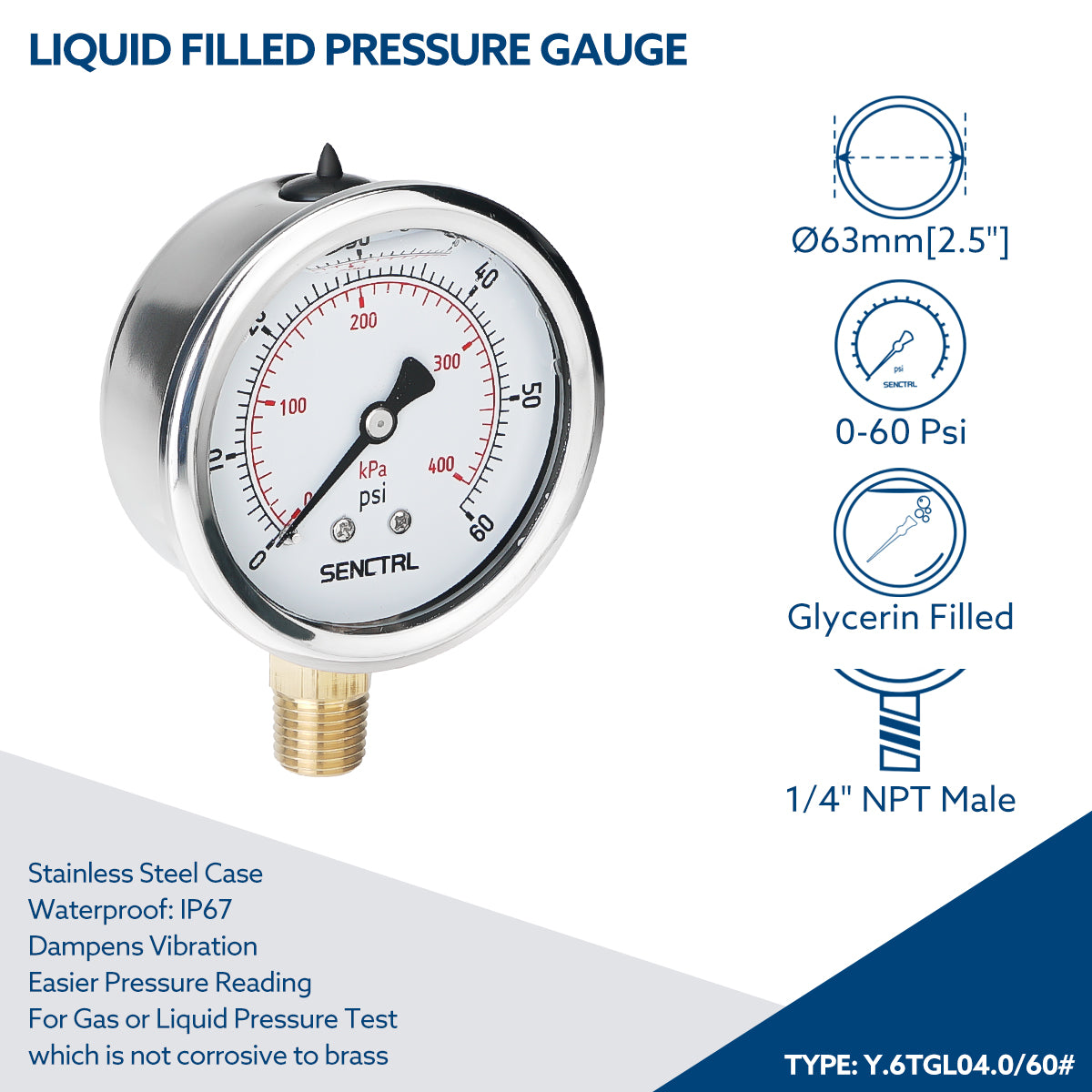

SENCTRL stainless steel 2.5 inch liquid filled pressure gauges provide great corrosion resistance. This model features a 1/4" NPT stainless steel bottom mount connection, bourdon tube and movement. It is cased in stainless steel and filled with glycerin oil to help dampen the effects of vibration and pulsation. This lower mount gauge is available in ranges from 0 to 60 psi. It can measure pressure in water, oil, gas and diesel.

Specifications

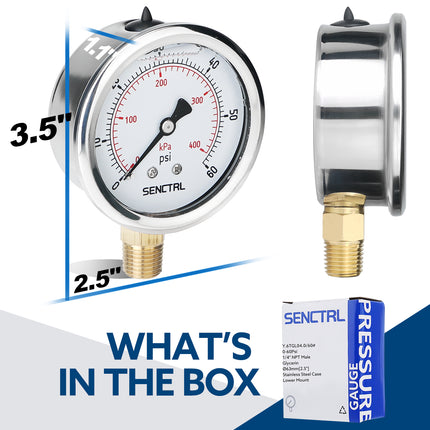

Dial Size: 2.5" (63 mm)
Mount Location: Lower Mount
Connection Size: 1/4" NPT
Liquid filling: Glycerin
Accuracy: +/-3-2-3%

Pros and cons

Robust design
Vibration & Shock-resistant
IP67 grade waterproof

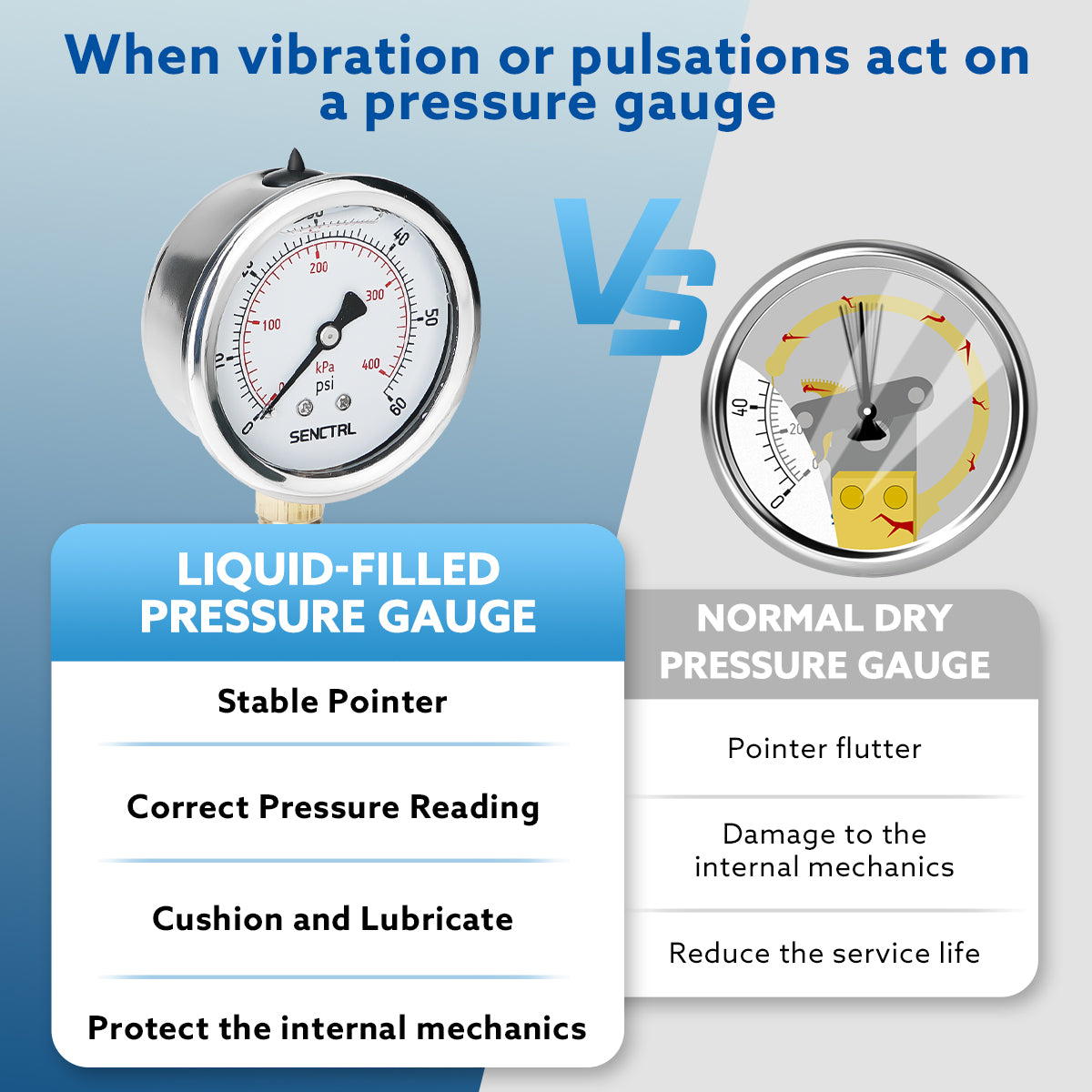

WHY CHOOSE A LIQUID-FILLED PRESSURE GAUGE ?

For certain applications pressure gauges with case fillings are recommended.
The following effects are prevented by the case filling.

Pointer flutter

Damages to the mechanics

Fogging of the window

More Specifications

Performance
Measuring principle: Bourdon tube
Indication accuracy: 2.5%
Scale Range: 0-60 Psi
Liquid filling: Glycerin
Ingress protection: IP67
+Pressure limitation:
-Steady: 3/4 x full scale value
-Fluctuating: 2/3 x full scale value
-Short time: Full scale value

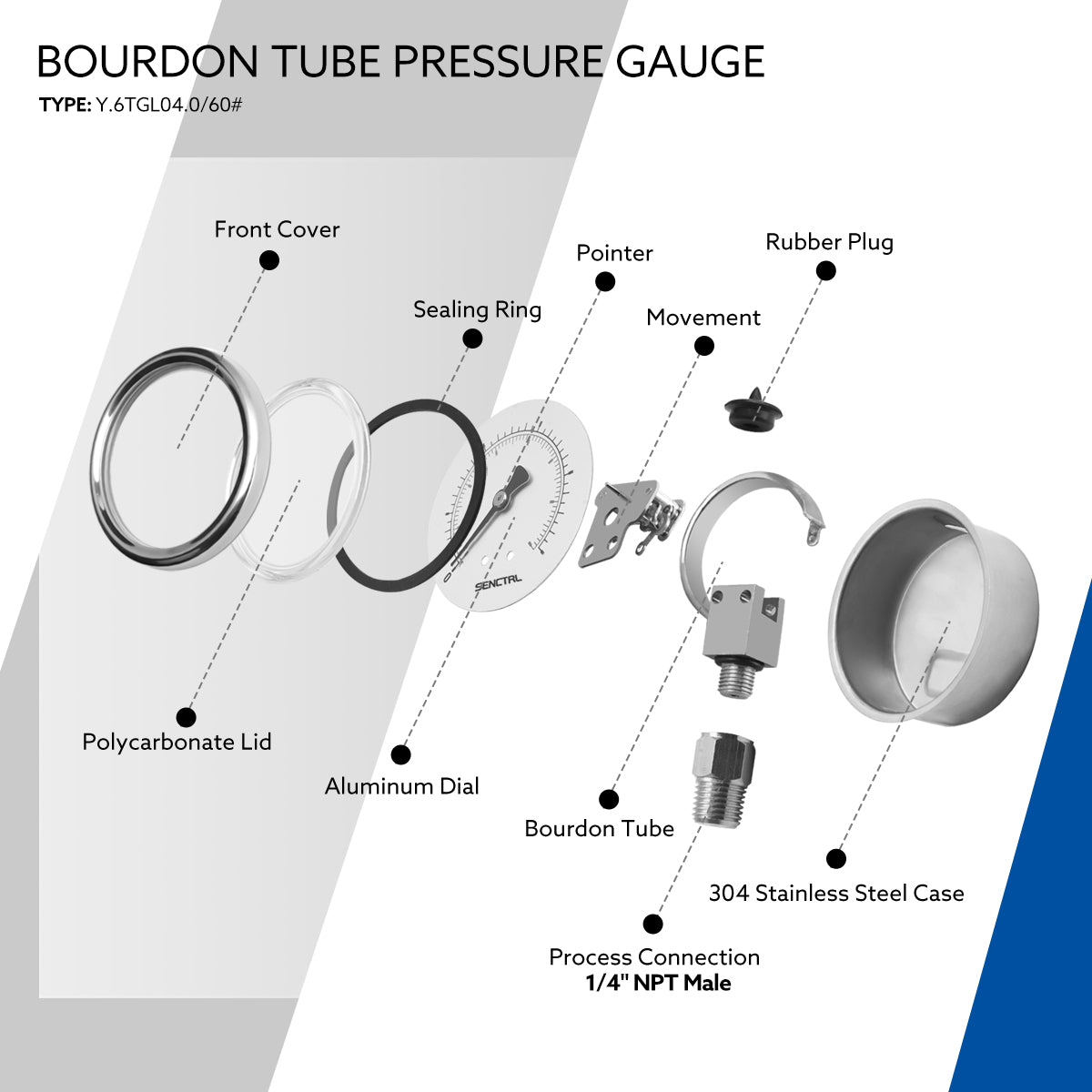

Physical
Dial Size: 2.5" (63 mm)
Case Materials: stainless steel 304L
Bourdon tube Materials: Stainless steel 304L
Process connection Materials: Copper alloy
Liquid filling: Glycerin
Process Connection Size: 1/4" NPT Male
Dial: Aluminium, white
Pointer: Aluminium, black
Window: Polycarbonate, crystal-clear
Environmental
Permissible Medium temperature: 140 ℉/60 ℃ maximum
Permissible Ambient Temperature: -4 to 140 ℉/-20 to 60 ℃

WETTED COMPONENTS

Bourdon Tube: Stainless steel 304L

Process Connection: Brass

Joints: Welded

Applications

+ For gaseous and liquid media that are not highly viscous or crystallising and will not attack copper alloy parts
- Pressure washers and sprayers
- Paint spray equipment
- Compressors
- Irrigation equipment
- Hydraulic systems
- Hydraulic hand tools

Datasheets & Instruction Manuals

Download Datasheets—Y.6TGL04.0/60#

Common Model Configurations

Model	Dial Size	Liquid Filled	Pros	Connection Thread	Permissible Ambient Temperature
Y.6TG	2.5" (63 mm)	Glycerin	Vibration and shock-resistant	1/4" NPT Male	-4°F to 140°F (-20°C to 60°C)
Y.6TS	2.5" (63 mm)	Silicone Oil	Low temperature resistance	1/4" NPT Male	-40°F to 140°F (-40°C to 60°C)
